Double End Units
The GSP double end unit is made up of two GSP hubs which rotate around one spindle. GSP manufactures end units in various sizes and with various features.
 |

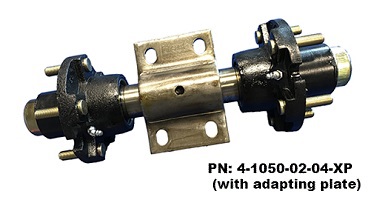

Double End Unit with Adapting Plate | |
| Part Number | Description | |
| 4-1050-02-04-XP | Double End Unit with Adapting Universal Plate | |
| Component Parts | ||
| Part Number | Description | |
| 15L17125-X | Double End Spindle with Adapter Plate | |
| 4-1050-02-05 | Hubs | |
| SW-1000 | Spindle Washer | |
| SN-1001 | Spindle Nut | |
| 1501-1 | Dust Cap | |
| SCP-103 | Cotter Pin | |
 |
Front/Rear Double End Unit | |
| Part Number | Description | |
| 4-1050-02-04 | Double End Unit for Clyde | |
| Component Parts | ||
| Part Number | Description | |
| 15L17125 | Double End Spindle | |
| 4-1050-02-05 | Hubs | |
| SW-1000 | Spindle Washer | |
| SN-1001 | Spindle Nut | |
| 1501-1 | Dust Cap | |
| SCP-103 | Cotter Pin | |
 |

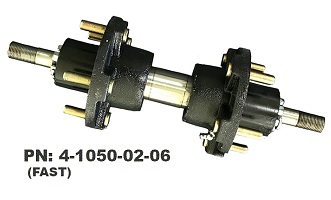

Rear Double End Unit for FAST | |
| Part Number | Description | |
| 4-1050-02-06 | Rear Double End Unit for older style FAST | |
| Component Parts | ||
| Part Number | Description | |
| S-1750-22X | Double End Spindle | |
| 4-1050-02-02 | Hubs | |
| SW-1000 | Spindle Washer | |
| SN-1001-01 | Spindle Nut | |
| SCP-103 | Cotter Pin | |
 |
Front Double End Unit for FAST | |
| Part Number | Description | |
| 4-1050-02-17 | Double End Unit (WASP Front) | |
| Component Parts | ||
| Part Number | Description | |
| 15L17125 | Double End Spindle | |
| 4-1050-02-02 | Hubs | |
| SW-1000 | Spindle Washer | |
| SN-1001-01 | Spindle Nut | |
| SCP-103 | Cotter Pin | |
